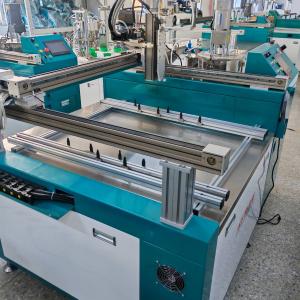

Precision Two-Part Adhesive Potting Solution for Power Adapters
Revolutionize Your Power Adapter Production with Precision Potting
Our Precision Two-Part Adhesive Potting Solution represents the cutting edge in electrical component protection technology. Specifically engineered for power adapters and chargers, this advanced system delivers unmatched reliability through automated dual-component adhesive application.
Key Features & Benefits:
Industrial-Grade Protection: Forms a durable, moisture-resistant barrier that shields sensitive charger components from environmental stressors
Automated Precision: Robotic dispensing ensures consistent glue thickness (0.5-3mm adjustable) with ±0.1mm tolerance
Rapid Cure Formula: Special epoxy blend cures in 90 seconds at 120°C, accelerating production cycles
Material Efficiency: Dual-cartridge system reduces adhesive waste by up to 40% compared to manual methods
Thermal Management: Optimized thermal conductivity (1.5 W/mK) prevents overheating in compact charger designs
Technical Specifications:
Compatible with adapters from 5W-100W
Works with epoxy, silicone, and polyurethane compounds
Standard 220V operation (110V option available)
CE compliant for global markets
Production Advantages:
Reduces potting labor costs by 60%
Eliminates manual mixing errors
Achieves 99.8% void-free encapsulation
Integrated quality control sensors
Ideal for manufacturers upgrading to Industry 4.0 standards, our solution seamlessly integrates with existing production lines while future-proofing your operation. The intelligent software monitors viscosity and temperature in real-time, automatically adjusting parameters for perfect results every time.
Backed by our 24/7 technical support and 5-year performance guarantee, this system has become the preferred choice for leading power supply brands across Asia, Europe, and North America.
Technical Parameters
Model | MG-1280 |
Working Range | 1200*800*100mm(X*Y*Z) |
Moving Speed | 0~500mm/sec |
Repeat Accuracy | ±0.02mm |
Mixing Proportion | 100:100~100:10(1:1~10:1) |
Metering Method | Precise Gear Pump or Rotary Plunger Pump |
Mixing Method | Static Mixing or Dynamic Mixing(based on glue nature) |
Mixing Accuracy | ±1% |
Glue Extrusion Accuracy | ±1% |
Glue Container Capacity | 30L 304 Stainless Barrel |
Glue Viscosity | Max≤20000CPS |
Glue Additive Proportion | MAX≤100(Glue):100(Additive)(1:1) |
Glue Additive Size | Max≤400tsp |
Control Mode | PLC+Handhold Teaching Programming Case+Touch Screen |
Programming | Teaching Programming |
Program Capacity | At least 100 unit, 4000 points/unit |
Transmission Method | Steeping Motor+Synchronous Belt+Linear Guide-way |
Working Pressure | 0.5-0.8Mpa |
Working Power | AC220V 50HZ/2000W(stirring,vacuuming, heating not included) |
Working Temperature | 0-40℃ |
Working Humidity | 20-90% no condensation |
Dimension | 1680x1200x1600 mm(WxDxH) |
Weight | About 350KG |
Optional Functions | Glue container stirring, pre-heating, vacuum de-foaming, automatic cleaning |
Suitable Glue: two component glue, such as organic silicone, epoxy, PU, acrylate etc.
Applications:Small size products with small volume of glue, such as LED display, wall washer light, line light, Ads module, nixie tube, mutual inductor, transformer, power module, photo-voltaic module, automobile head light, daytime running light, negative-ion generator, crystal photo frame etc.
|
|
